Key Features:

Efficiency Grades: F6 to F7 (EN 779 / ISO 16890 standards)
Rated Airflow: 1000 to 3600 m³/h
Frame Options: Plastic, galvanized steel, or aluminum
Filter Media: Ultra-fine synthetic fiber or glass fiber
Low Resistance: Reduces energy consumption
Non-Toxic Materials: Safe for critical cleanroom applications

By capturing larger airborne particles, Mini-Pleat Filters serve as effective pre-filters for HEPA systems, reducing the burden on final stage filters and enhancing overall system efficiency. Their rugged construction ensures reliable performance even under high-volume air conditions, making them a cost effective and dependable choice for maintaining clean, efficient airflow.

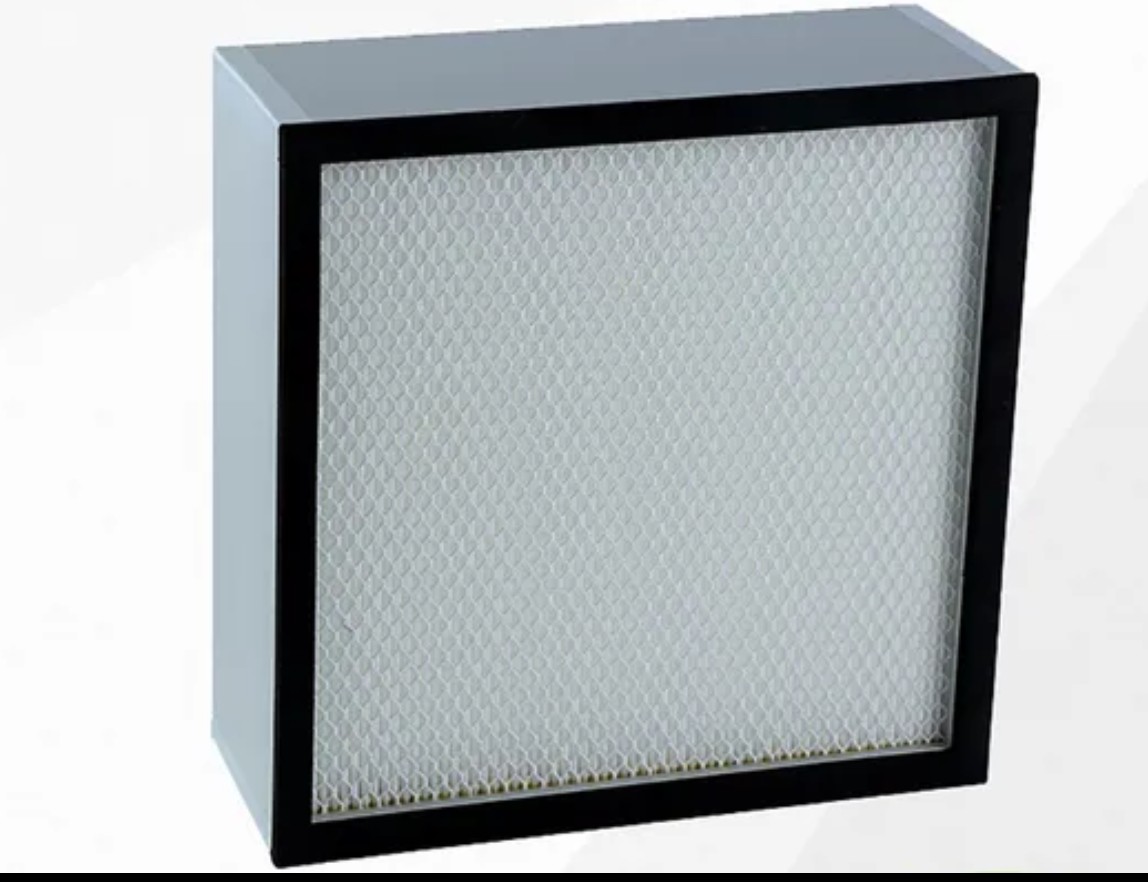

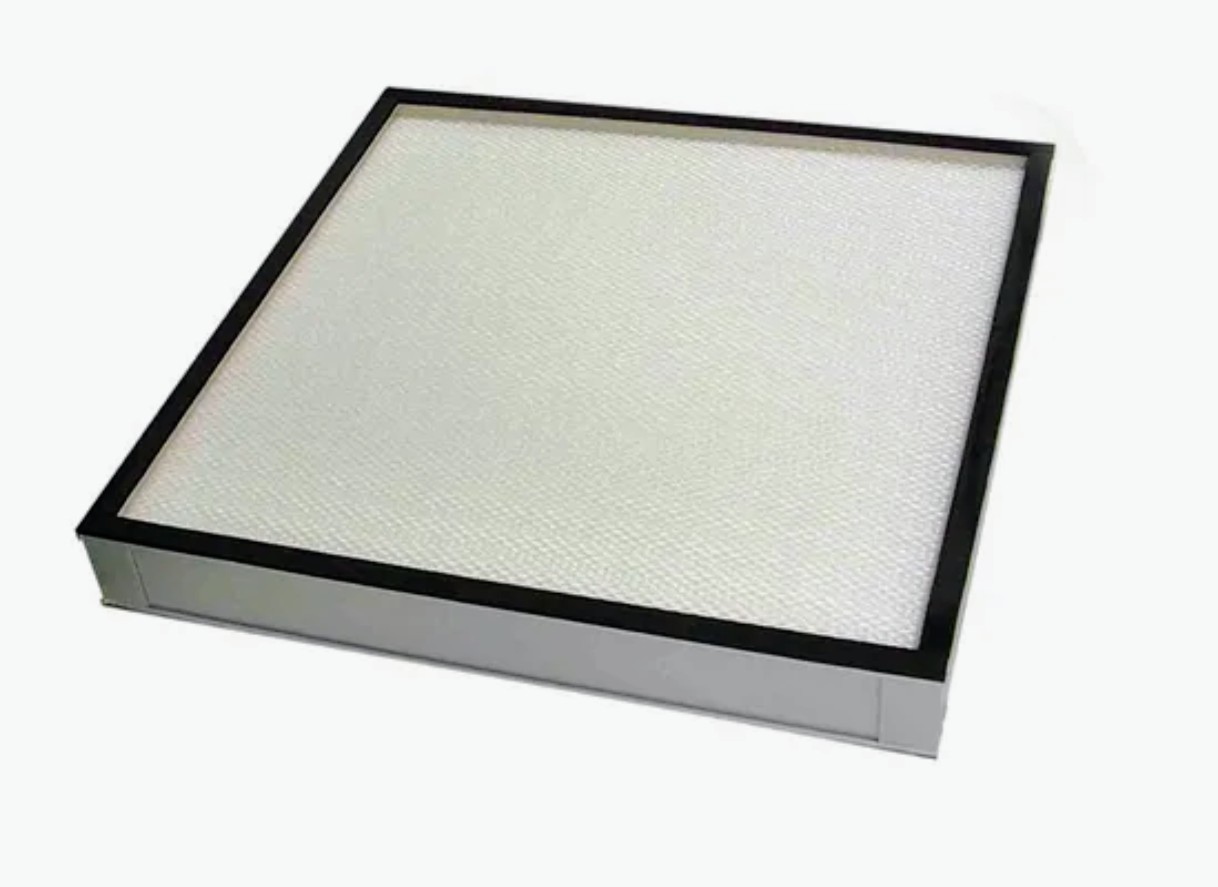

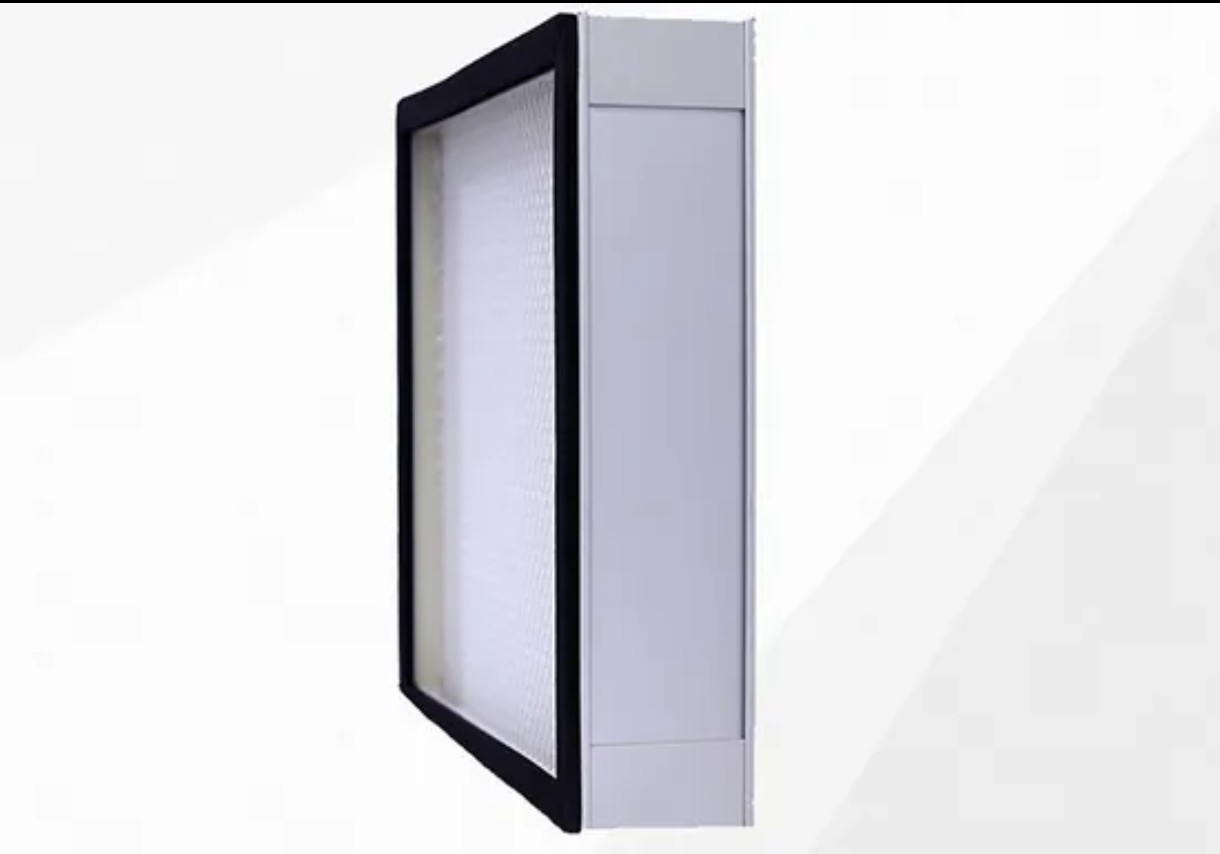

High-Capacity Mini-Pleat Filters for Cleanroom & HVAC Pre Filtration

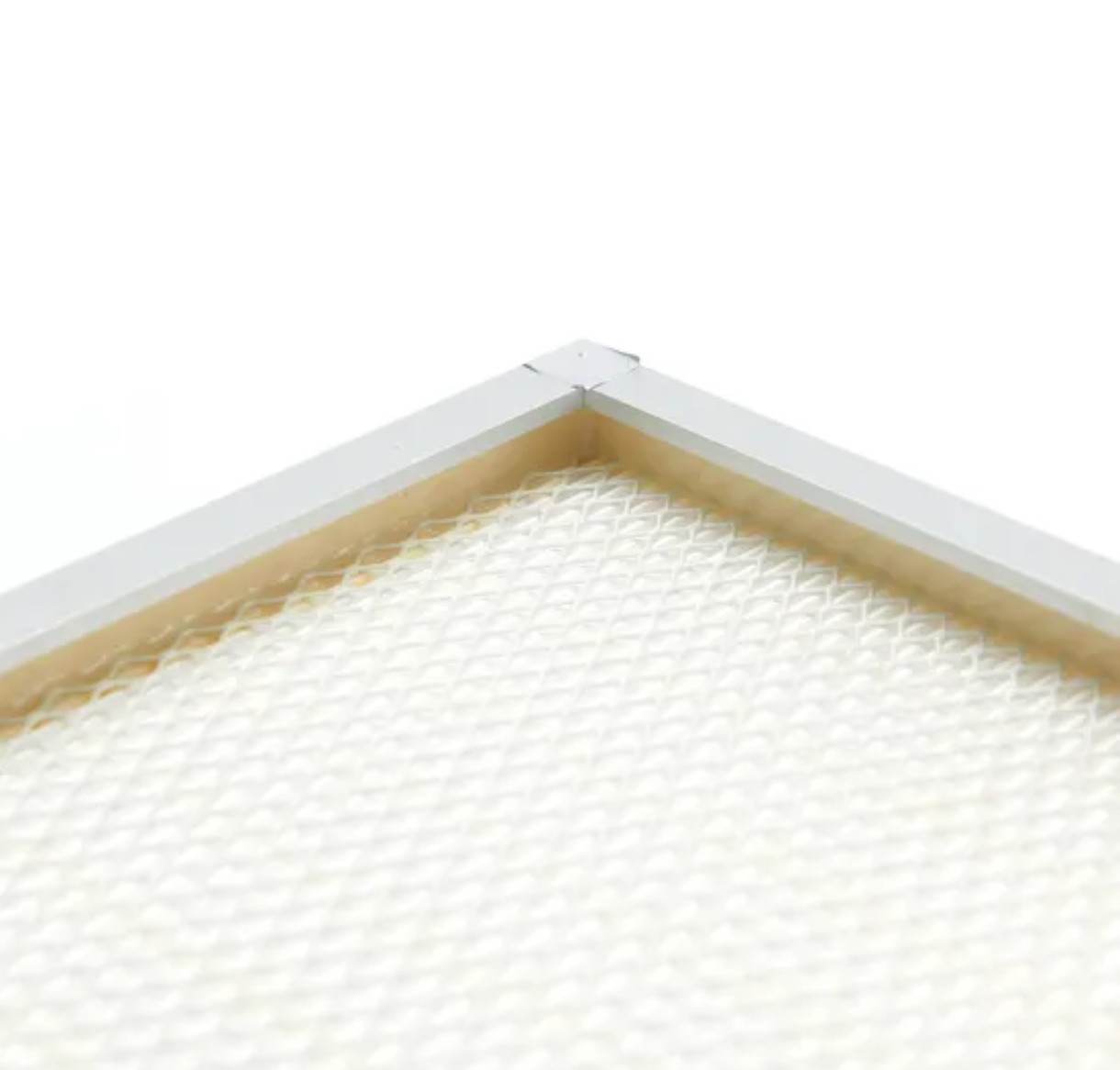

Hemricore High-Capacity Mini-Pleat Filters are engineered for superior pre-filtration performance in cleanroom and HVAC systems. These filters feature high-efficiency pleated media and are available with frames made of premium plastic, galvanized steel, or aluminum. The filtration material consists of ultra fine synthetic fiber or glass fiber, ensuring excellent particle retention.

Designed with a large filtration surface area, they offer low initial resistance, extended service life, and high dust holding capacity. Their compact, lightweight design enables easy installation and maintenance, making them ideal for high efficiency airflow systems in pharmaceuticals, electronics manufacturing, food processing, and other sensitive environments.

Model	Efficiency Grade	Dimensions (W—H—D mm)	Filtration Area (mÂ²)	Rated Airflow (mÂ³/h)	Initial Resistance / Airflow (Pa/m³/h)
FSTMZ/P6y-F7	F7	595—595—295	18.8	1000	85/2500	135/3600	145/5000
FSTMZ/P36-F7	F7	295—595—295	8.4	2000	50/1250	50/1800	145/2500
FSTMZ/P56-F7	F7	490—592—292	15.4	3000	50/1250	185/3000	145/4000
FSTMZ/P66-F6	F6	595—595—295	19	3600	35/2500	65/3600	110/5000
FSTMZ/P36-F6	F6	295—595—295	8.5	1800	35/1250	65/1800	110/2500
FSTMZ/P56-F6	F6	490—592—292	15.6	3000	35/2500	65/3000	110/4000
Note: Custom sizes available upon request.
