Hepa Housing Module

Hepa Housing Module

Whatsapp Chat Call Us: +91 9140069805 Enquiry Now
Key Features:
  • Range of Airflow: 500-3000 m³/h
  • Inlet Dimensions: 200-630 mm
  • Ceiling Integration Sizes: 380—380 mm to 1320—690 mm
  • Applications: Cleanrooms in pharma, hospitals, biotech labs, electronics
  • Installation: Fast, efficient ceiling mounting with minimal disruption
  • Custom Sizes: Available for specialized cleanroom configurations

With low investment and easy installation, Hemricore HEPA Modules are the ideal solution for cleanroom and clean room environments that demand superior air quality control, energy efficiency, and design flexibility.

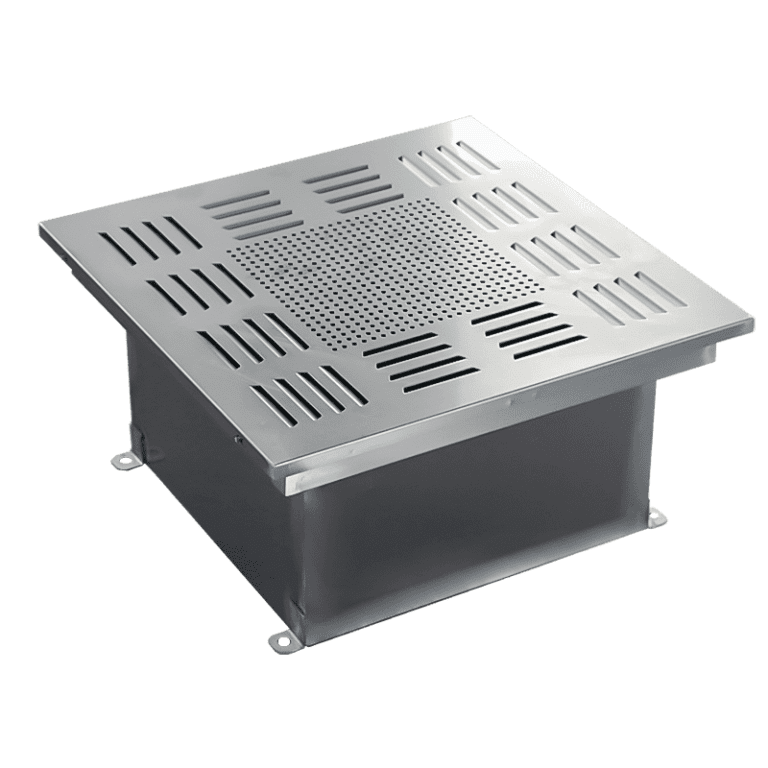

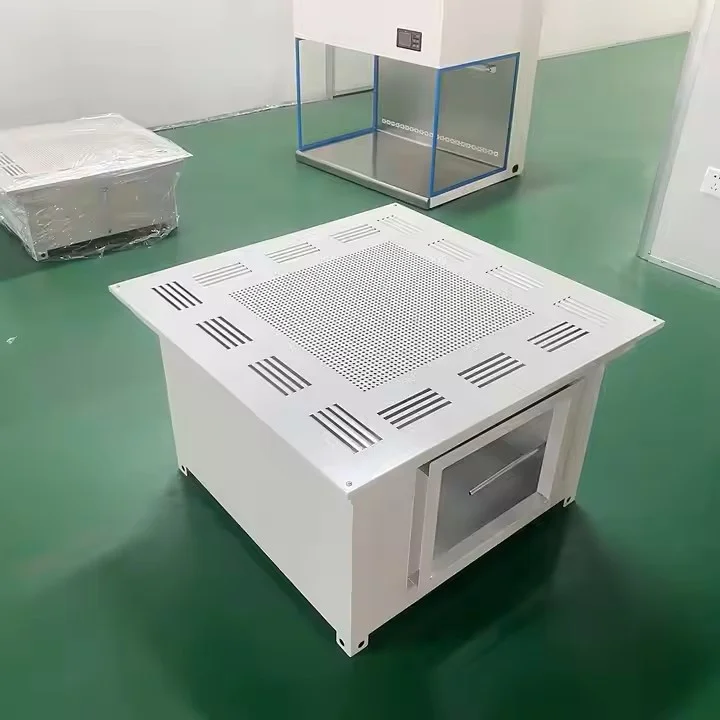

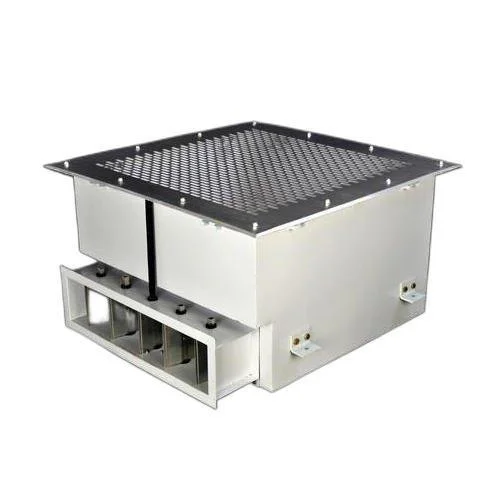

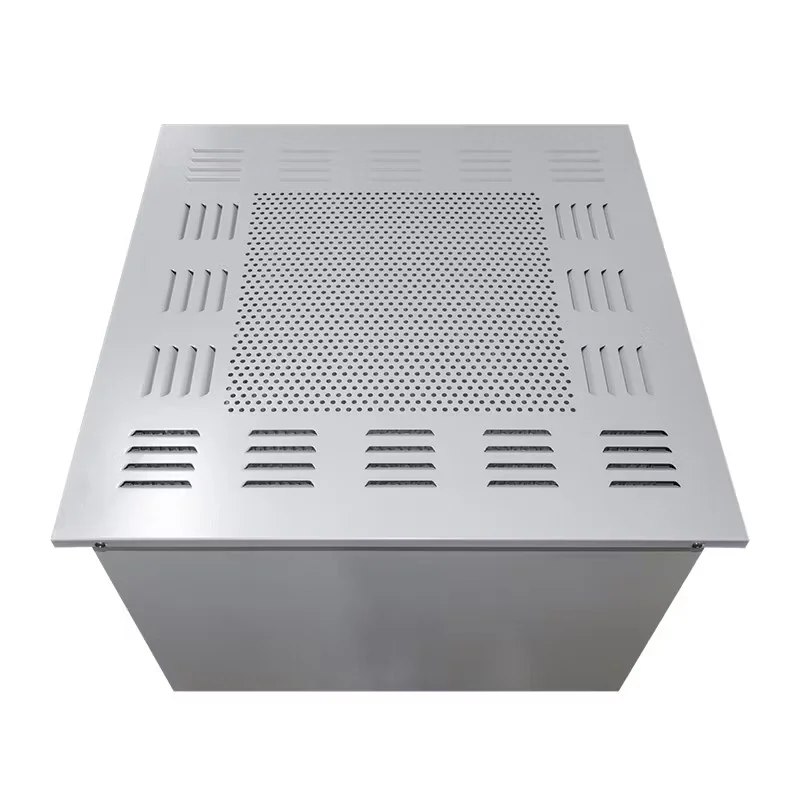

Hemricore HEPA Modules Efficient Ceiling-Mounted Air Filtration for Cleanrooms

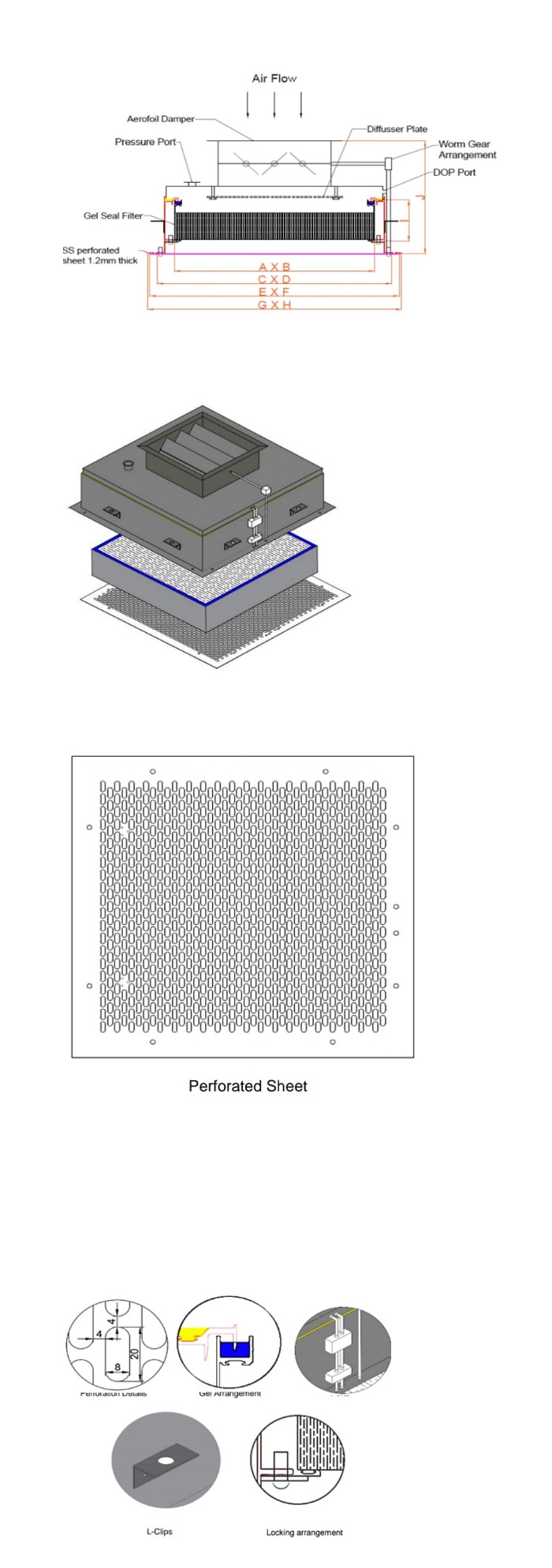

The Hemricore Module is a compact, incredibly efficient air supply device designed to maintain the cleanest possible controlled environments. It uses a diffuser plate, plenum box, and HEPA filter to provide precise and dependable airflow throughout significant cleanroom areas. It is made to be integrated into the ceiling.

The HEPA Module is constructed from high-quality cold-rolled steel and features an electrostatic powder coating for a long-lasting, corrosion-resistant, and aesthetically pleasing integration. It works as a dependable terminal HEPA filtration unit and is perfect for both new cleanroom construction and retrofit applications.

This modular device, which is widely used in pharmaceutical, electronics, biotechnology, and healthcare facilities, can accommodate a variety of layout configurations and airflow needs.

Model External Dimensions
(L—W—H mm)		 HEPA Filter Dimensions
(mm)		 Rated Airflow
(m³/h)		 Inlet Size
(mm)		 Ceiling Installation Size
(mm)
Side Inlet Top Inlet
FST-320 FST-320D 370—370—500 320—320—220 500 200—200 380—380
FST-484 FST-484D 534—534—500 484—484—220 1000 320—200 544—544
FST-610 FST-610D 660—660—500 610—610—150 1000 320—250 670—670
FST-630 FST-630D 680—680—550 630—630—220 1500 320—250 690—690
FST-915 FST-915D 965—660—500 915—610—150 2000 500—250 975—670
FST-1220 FST-1220D 1270—660—500 1220—610—150 2500 630—250 1280—670
FST-1260 FST-1260D 1310—680—550 1260—630—220 3000 630—250 1320—690
Note: Custom sizes available upon request.
