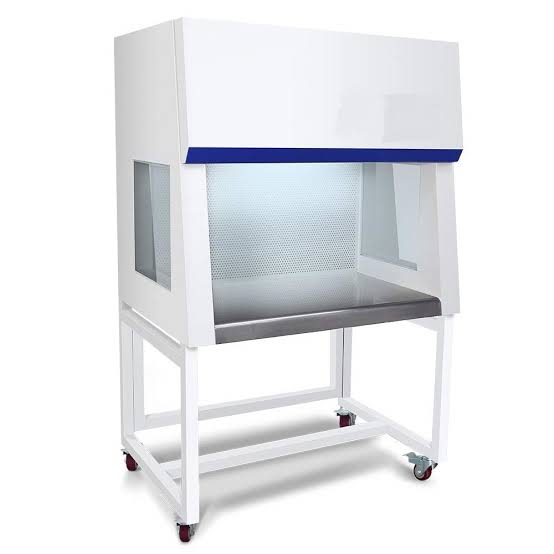

The vertical laminar flow clean bench is a localized purification device widely used in controlled clean environments.
Applications include laboratories, biopharmaceuticals, optoelectronics, microelectronics, and hard disk manufacturing.
Laminar Flow Hoods, also known as clean benches, are used in laboratories, healthcare facilities, and other controlled environments to create a sterile and particle-free work area.
These hoods provide a continuous flow of filtered air to maintain a clean environment for various applications, such as handling sterile materials, working with sensitive samples, or conducting experiments that require a controlled environment.
Laminar Flow Hoods can be classified as either vertical or horizontal based on the direction of airflow within the hood
In a horizontal laminar flow hood, the airflow is directed horizontally from the back of the hood toward the front, parallel to the work surface. The filtered air passes through a HEPA filter located at the back of the hood and flows across the work area before being exhausted out of the front of the hood. This airflow pattern helps create a clean, particle-free environment for the materials or samples on the work surface.
Horizontal laminar flow hoods are commonly used for applications that require protection of the samples or materials from contamination. They provide a uniform airflow across the entire work surface, minimizing the risk of cross-contamination between different items being processed. Horizontal laminar flow hoods are often used in applications such as tissue culture, electronics assembly, or any process where a clean, particle-free environment is required
| Model | FSTVC-990 | FSTVC-1300 | FSTVC-1600 | FSTVC-1900 |
|---|---|---|---|---|
| External Dimensions L—D—H (mm) | 1040—645—1900 | 1640—740—1900 | 2000—740—1900 | |
| Working Area Dimensions L—D—H (mm) | 960—645—750 | 1560—645—750 | 1920—645—750 | |
| Manufacturing / Testing Standard | U.S. Federal Standard 209E | |||
| Airflow (m³/h) | 990 | 1300 | 1600 | 1900 |
| Air Velocity (m/s) | Average 0.45 ± 20% | |||
| Cleanliness Level | Class 100 (U.S. Federal Standard 209E) | |||
| HEPA Filter Efficiency | 99.95%@MPPS | |||
| Worktable Vibration Peak Half-Value | Worktable and frame can be separated, no vibration interference | |||
| Cabinet Material | High-quality cold-rolled steel, electrostatic spray coating, matte white (custom colors or stainless steel available) | |||
| Worktable Material | Surface: Brushed Stainless Steel / Back: Fireproof MDF Board | |||
| Noise Level | <58dB | <60dB | <62dB | |
| Noise Measurement Position | 20cm in front of the worktable, 1.2m above ground | |||
| Power Supply | 220V, 50HZ, Single-phase | |||
| Power Consumption | 0.155KW | 0.175KW | 0.29KW | 0.31KW |
| Suitable for Users | 1 | 1 | 2 | 3~4 |
| Weight | ~250kg | ~300kg | ~500kg | ~800kg |
| Note: Custom sizes available upon request. | Â | |||
