An F8 bag filter is a medium-efficiency air filter designed by Hemricore Solution Private limited to effectively remove small particles, such as dust, pollen, and other microscopic substances, from the air with at least 90% efficiency for particles larger than 3 micrometers. Key features include a synthetic non-woven fabric media for high capture efficiency with low airflow resistance, a durable outer frame (aluminum or galvanized steel), and a multi-pocket design to increase surface area and dust holding capacity. These filters are primarily used in central air conditioning and ventilation systems as part of a multi-stage filtration process to protect subsequent filters and the system itself.

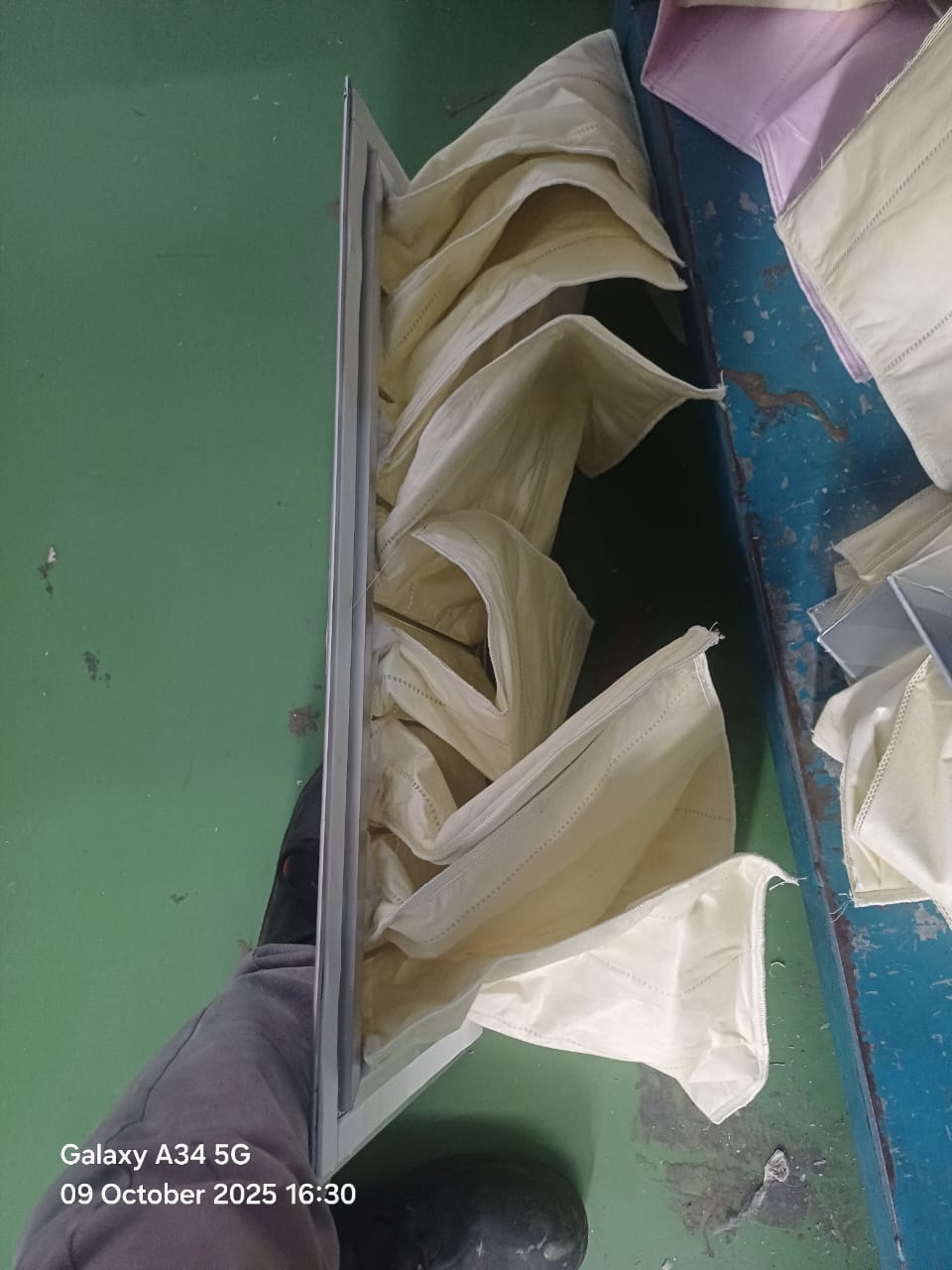

Primary/Medium Efficiency Pocket Filter
With its innovative design, this pocket/bag filter combines the benefits of a large surface area and deep filter pockets, making it highly efficient in capturing both particulate matter and fine dust particles.
Every pocket/bag in the filter is reinforced by six layers of lining, preventing the bags from over-expanding, which causes overlaps between bags, reducing filter area and efficiency.
The connection between the pockets and the frame is hot-melt sealed to avoid leaks and the risk of breakage.
Features:
Grade: G4, M5, M6, F7, F8;
MERV7, MERV8, MERV9, MERV10, MERV11, MERV12, MERV13, MERV14
Frame options: Galvanized steel or aluminum alloy
Filter media: superfine synthetic fibers
Fibers are electrostatically charged to better trap particles
Properly sealed between media and frame to avoid air bypass
Low initial airflow resistance, high efficiency
Flame-retardant, temperature with standing up to 80.
